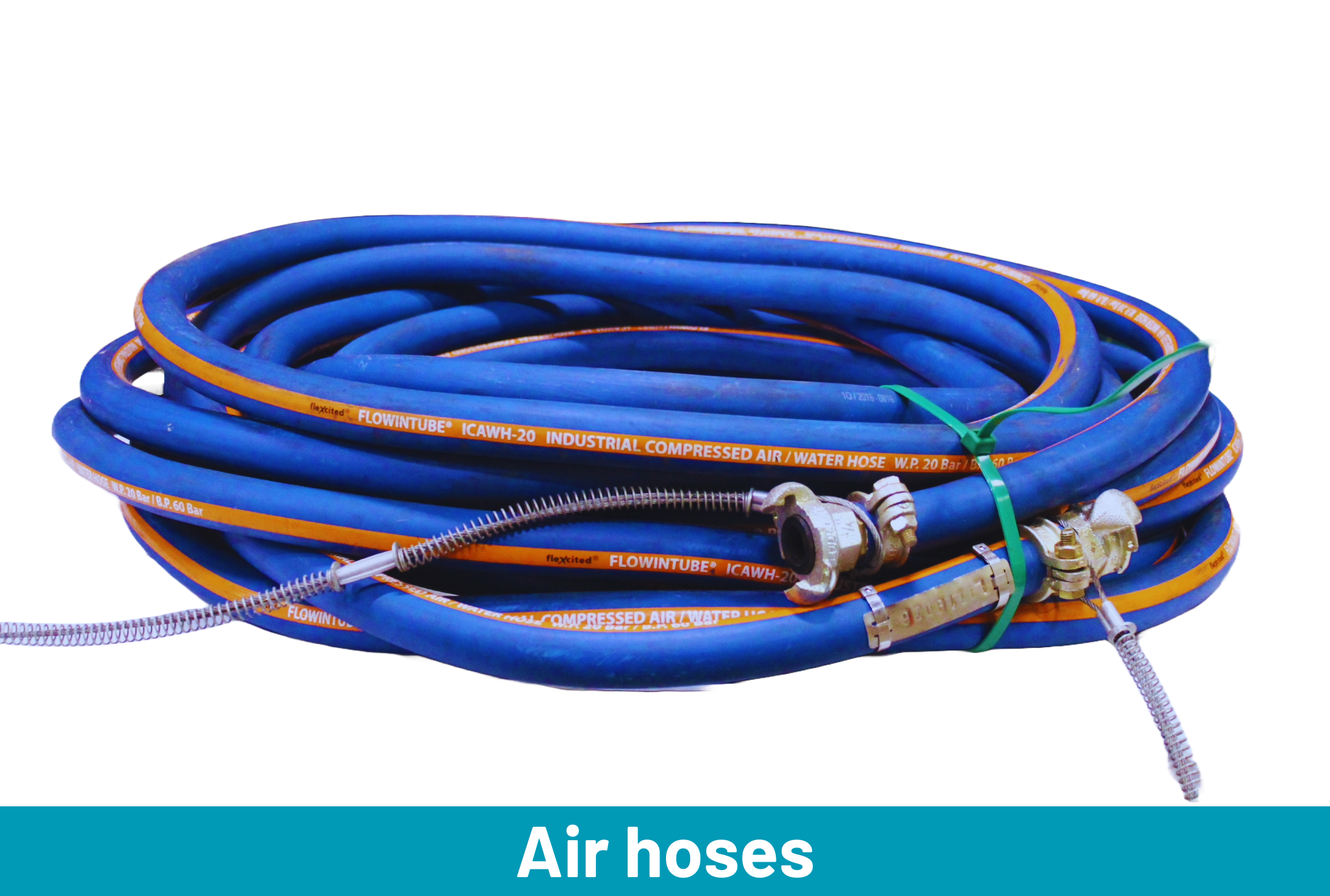

Air Hoses
Air hoses are critical components in a wide range of applications, enabling the reliable and efficient transport of compressed air. Designed for durability and versatility, air hoses play a vital role in industries such as manufacturing, construction, automotive, and beyond. Explore our high-quality air hoses designed for superior pneumatic system performance.
| Constructions | |
|---|---|
| Inner Tube | TPE, black, smooth oil mist resistant |
| Reinforcement | Polyester plies high tensile textile cord |
| Cover | TPE, blue with orange longitudinal stripe, smooth, weather, ageing, UV and ozone resistant |
| Outer wire | Stainless steel 316 |
| Technical specifcations | |
| Working pressure | 20 Bar |
| Bursting pressure | 60 Bar |
| Temperature range | -30 °C. to 60 °C. |
| Item Code | ID mm | OD mm | Weight KG / M | Bending radius mm | Length m |
|---|---|---|---|---|---|
| 6151220019 | 19 | 31 | 0,610 | 150 | 20/60 |
| 6151220025 | 25 | 39 | 0,880 | 200 | 20/60 |
