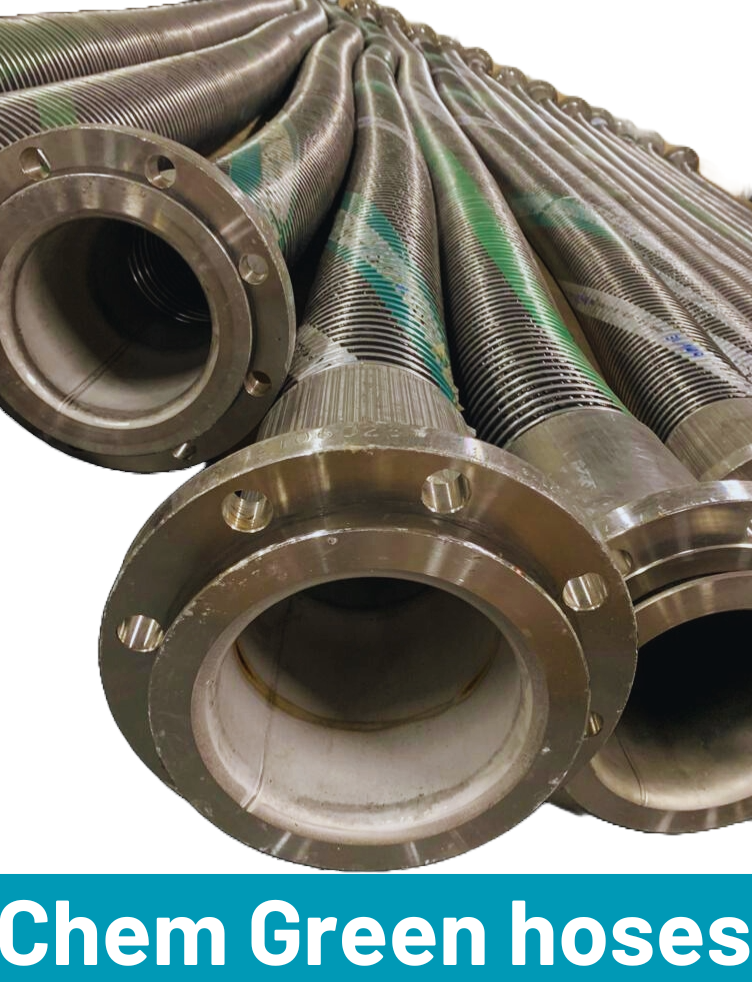

Chem Green hoses
Chem Green hoses are purpose-built for substances that are compatible with the Polypropylene lining and Stainless Steel inner wire. These hoses feature meticulously engineered layers for exceptional durability in the harshest conditions, optimizing performance and longevity.
| Certifications | |
|---|---|
| EN 13765 | |
| IMO IBC | |
| Constructions | |
| Inner wire | Stainless steel 316 |
| Lining | Polypropylene |
| Outer cover | Polyester PVC coated green |
| Outer wire | Galvanized- or Stainless steel 316 |
| Physical properties | |
| Maximum elongation | 10% on proof pressure |
| Electrical resistance | max. 100 Ohm per length |
| Maximum twist | 10° p/m |
| Vacuum range | 0,9 bar |
| Min. burst pressure | 5x working pressure (safety fact 5:1) |
| Max flowrate | On request |
| Max tensile strength | On request |
| Pressure losses | On request |
| Temperature range | -30°C upto +80°C |
| Multi-chem green Hose | Code number | Application |
| Light duty | 240732300 | Tank truck and railcar |
| Standard duty | 241031300 | Tank truck, railcar and in plant transfer |
| Heavy duty | 241431300 | Heavy duty marine operations and ship and barge loading and unloading |
Chem-green Hose, Code 240732300 (Tank truck and railcar)
| Bore diameter (inches) | Bore diameter (mm) | Max. work. pressure (PSI) | Max. work. pressure (bar) | Bend radius (inches) | Bend radius (mm) | Weight (lbs/ft) | Weight (kg/m) | Maximum length (ft) | Maximum length (m) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 28 | 100 | 7 | 4.9 | 125 | 0.55 | 0.85 | 100 | 30 |
| 1.5 | 40 | 100 | 7 | 5.9 | 150 | 0.75 | 1.15 | 100 | 30 |
| 2 | 50 | 100 | 7 | 7.9 | 200 | 0.85 | 1.3 | 100 | 30 |
| 2.5 | 65 | 100 | 7 | 8.3 | 210 | 1.45 | 2.2 | 100 | 30 |
| 3 | 80 | 100 | 7 | 11.8 | 300 | 1.8 | 2.7 | 100 | 30 |
| 4 | 100 | 100 | 7 | 15.7 | 400 | 2.95 | 4.4 | 100 | 30 |
Chem-green Hose, Code 241031300 (Tank truck, railcar and in plant transfer)
| Bore diameter (inches) | Bore diameter (mm) | Max. work. pressure (PSI) | Max. work. pressure (bar) | Bend radius (inches) | Bend radius (mm) | Weight (lbs/ft) | Weight (kg/m) | Maximum length (ft) | Maximum length (m) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 28 | 150 | 10.5 | 4.9 | 125 | 0.65 | 0.95 | 100 | 30 |
| 1.5 | 40 | 150 | 10.5 | 5.9 | 150 | 1.15 | 1.7 | 100 | 30 |
| 2 | 50 | 150 | 10.5 | 7.9 | 200 | 1.2 | 1.8 | 100 | 30 |
| 2.5 | 65 | 150 | 10.5 | 7.9 | 200 | 1.95 | 2.9 | 100 | 30 |
| 3 | 80 | 150 | 10.5 | 11.8 | 300 | 2.35 | 3.5 | 100 | 30 |
| 4 | 100 | 150 | 10.5 | 15.7 | 400 | 3.65 | 5.5 | 100 | 30 |
Chem-green Hose, Code 241431300 (Heavy duty marine operations and ship and barge loading and unloading)
| Bore diameter (inches) | Bore diameter (mm) | Max. work. pressure (PSI) | Max. work. pressure (bar) | Bend radius (inches) | Bend radius (mm) | Weight (lbs/ft) | Weight (kg/m) | Maximum length (ft) | Maximum length (m) |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 80 | 200 | 14 | 13.8 | 350 | 3 | 4.5 | 100 | 30 |
| 4 | 100 | 200 | 14 | 15.7 | 400 | 5.25 | 7.9 | 100 | 30 |
| 5 | 125 | 200 | 14 | 20.1 | 510 | 6.45 | 9.7 | 100 | 30 |
| 6 | 150 | 200 | 14 | 22.6 | 575 | 8.25 | 12.4 | 100 | 30 |
| 8 | 200 | 200 | 14 | 31.5 | 800 | 14.55 | 21.8 | 100 | 30 |
| 10 | 250 | 200 | 14 | 39.37 | 1000 | 17.8 | 26.7 | 100 | 30 |
| 12 | 300 | 150 | 10.5 | 47.24 | 1200 | 21.1 | 32 | 59 | 18 |
