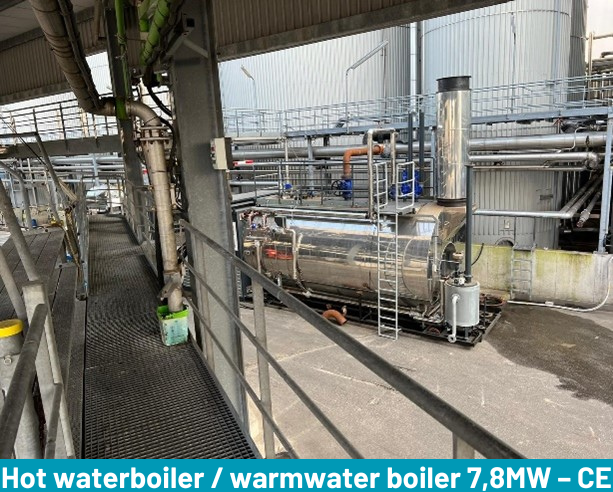

Hot waterboiler / warmwater boiler 7,8MW – CE
Unlock the potential of hot water systems with LTT Holland’s innovative boilers. Designed for efficiency and reliability, our hot water boilers redefine how industries experience water heating. With a commitment to sustainability and cutting-edge technology, our boilers ensure consistent hot water supply while optimizing energy usage. Explore our range of hot water boilers for tailored solutions that bring precision and reliability to your industrial or commercial setting. Choose LTT Holland for hot water boilers that elevate your operational efficiency.
| Component | Specification |
|---|---|
| Connections | |
| Natural gas | Dn100pn16 |
| Min. conn. Pressure | 100mbarg |
| Max. Conn. Pressure | 8000mbarg |
| Max. gas flow | 840nm3 |
| Light oil | 1″ |
| Min. conn. Pressure | -0.4 barg |
| Max. oil flow | 850 l/h |
| Hot water | |
| Hot water inlet | dn200pn40 |
| Hot water outlet | dn200pn40 |
| Max temperature setpoint | 160 degrees |
| Max. steam pressure | 25.0 barg |
| Max. working pressure | 23.0 barg |
| Max hot water capacity | 7.8MW |
| Min. conductivity | 50 microsiemens |
| Min. pH | 10 |
| Draine | dn80pn16 |
| Electrical | |
| Voltage | 400V-50Hrz |
| Ampere | 125A |
| Dimensions | |
| Transport dem. | LxWxH 1300cm x 333cm x 341cm |
| Operation dem. | LxWxH 1300cm x 333cm x 831cm |
| Transport weight | 44150kg |
| Operation weight | 63000kg |
| Remote connection | |
| Optional accessories | |
| Watersoftener | Oiltank |
| Economizer |
