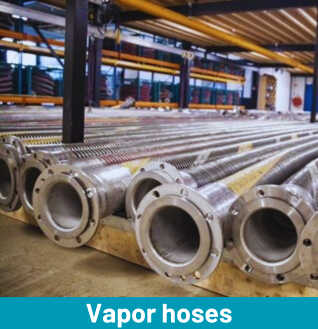

Vapor hoses
Vapor hoses are specially designed for the recovery of vapor from ships, barges and tank terminals. It can also been used to recover vapors in tank and railcar applications. Vapor hoses are certified with a product certificate. This hoses have an internal wire made of galvanized steel, stainless steel 316 or polypropylene coated steel and have a polypropylene or PTFE liner. The vapor hoses are resistance against vacuum, light weight and extremely flexible.
| Certifications | |
|---|---|
| EN 13765 | |
| IMO IBC | |
| Constructions | |
| Inner wire | Stainless steel 316 or PP coated |
| Lining | Polypropylene / PTFE |
| Outer cover | Polyester PVC coated yellow |
| Outer wire | Galvanized- or Stainless steel 316 |
| Physical properties | |
| Maximum elongation | 10% on proof pressure |
| Electrical resistance | – 2,5 Ohm p/mtr < 2” – 1,0 Ohm p/mtr >/= 2” |
| Maximum twist | 10° p/m |
| Vacuum range | 0,5 bar |
| Min. burst pressure | 5x working pressure (safety fact 5:1) |
| Max flowrate | On request |
| Max tensile strength | On request |
| Pressure losses | On request |
| Temperature range | -30°C up to +80°C |
Multi-Vapor Yellow Vapor Recovery Service, Code 210542100 type 1
| Bore diameter (inches) | Bore diameter (mm) | Max. work. pressure (PSI) | Max. work. pressure (bar) | Bend radius (inches) | Bend radius (mm) | Weight (lbs/ft) | Weight (kg/m) | Maximum length (ft) | Maximum length (m) |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 75 | 5 | 7.9 | 200 | 0.8 | 1.2 | 100 | 30 |
| 3 | 80 | 75 | 5 | 11.8 | 300 | 1.45 | 2.2 | 100 | 30 |
| 4 | 100 | 75 | 5 | 15.7 | 400 | 2.55 | 3.8 | 100 | 30 |
| 6 | 150 | 75 | 5 | 22.6 | 575 | 4.7 | 7 | 100 | 30 |
| 8 | 200 | 75 | 5 | 31.5 | 800 | 8 | 12 | 100 | 30 |
Multi-Vapor Yellow Vapor Recovery Service, Code 210532300 type 1
| Bore diameter (inches) | Bore diameter (mm) | Max. work. pressure (PSI) | Max. work. pressure (bar) | Bend radius (inches) | Bend radius (mm) | Weight (lbs/ft) | Weight (kg/m) | Maximum length (ft) | Maximum length (m) |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 75 | 5 | 7.9 | 200 | 0.8 | 1.2 | 100 | 30 |
| 3 | 80 | 75 | 5 | 11.8 | 300 | 1.45 | 2.2 | 100 | 30 |
| 4 | 100 | 75 | 5 | 15.7 | 400 | 2.55 | 3.8 | 100 | 30 |
| 6 | 150 | 75 | 5 | 22.6 | 575 | 4.7 | 7 | 100 | 30 |
| 8 | 200 | 75 | 5 | 31.5 | 800 | 8 | 12 | 100 | 30 |
| 10 | 250 | 75 | 5 | 39.8 | 1000 | 10,7 | 16 | 65 | 20 |
| 12 | 300 | 75 | 5 | 47,2 | 1200 | 17,3 | 26 | 59 | 18 |
