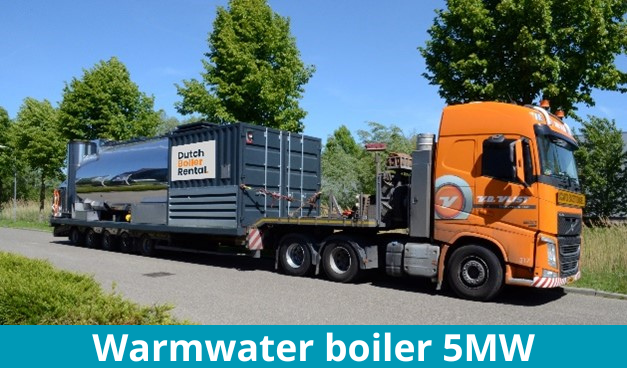

Warmwater boiler 5MW

Transform your approach to water heating with LTT Holland’s advanced warm water boilers. Engineered for efficiency and dependability, our warm water boilers redefine the standard in heating technology. Committed to sustainability and cutting-edge design, these boilers guarantee a reliable and energy-efficient warm water supply. Explore our diverse range of warm water boilers, tailored to meet the specific needs of your industrial or commercial setting. Choose LTT Holland for warm water boilers that bring precision and reliability to elevate your heating solutions.

Component Specification
Connections
Natural gas Dn100pn16
Min. conn. Pressure 100mbarg
Max. Conn. Pressure 8000mbarg
Max. gasflow 520nm3
Light oil 1″
Min. conn. Pressure -0.4 barg
Max. oil flow 495 l/h
Hot water
Hot water inlet dn200pn40
Hot water outlet dn200pn40
Max temperature setpoint 160 degrees
Max steam pressure 25.0 barg
Max working pressure 23.0 barg
Max hot water capacity 5.0MW
Min. conductivity 50 microsiemens
Min pH 10
Draine dn80pn16
Electrical
Voltage 400V-50Hz
Ampere 125A
Dimensions
Transport dem. LxWxH 1300x333x341cm
Operation dem. LxWxH 1300x333x831cm
Transport weight 44150kg
Operation weight 63000kg
Remote connection
Optional accessories
Economizer Oiltank
Hoses
